Subject: Mazak quick slant 20 4 axis cnc turning center

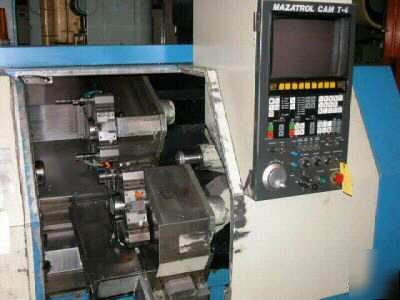

MAZAK QUICK SLANT 20 4 AXIS CNC TURNING CENTER
MANUFACTURED 1986, RACO Stock Number R014294
MAXIMUM CUTTING DIAMETER - 9.7"
MAXIMUM CUTTING LENGTH - 20.7"
TURRET TRAVEL - ( UPPER TURRET, X AXIS ) - 7.4"
TURRET TRAVEL - ( UPPER TURRET, Z AXIS ) - 21.2"
TURRET TRAVEL - ( LOWER TURRET, X AXIS ) - 5.4"
TURRET TRAVEL - ( LOWER TURRET, Z AXIS ) - 21.2"
TURRET POSITIONS ( UPPER TURRET ) - 8
TURRET POSITIONS ( LOWER TURRET ) - 8
SPINDLE SPEED RANGE - 16 TO 4000 RPM
SPINDLE DRIVE MOTOR, CONTINUOUS/30 MIN. - 20 HP A.C.
MAZATROL CAM T-4 4 AXIS CNC CONTROL
APPROX. WEIGHT: 7480 LBS., APPROX. DIMENSIONS: 120"L X 69"W X 71"H
*** IN VERY GOOD WORKING CONDITION, CAN BE INSPECTED UNDER POWER ***
*** FREE LOADING ONTO OPEN TRUCK, PRICE INCLUDES 30 DAY RETURN PRIVILEGE ***
