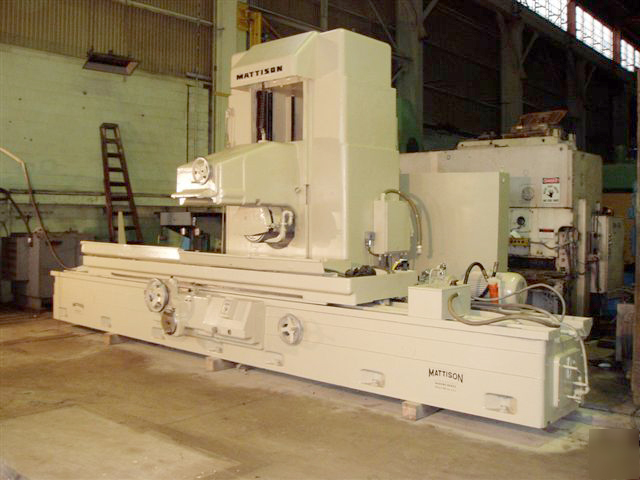

MATTISON MODEL 36-120 HORIZONTAL HYDRAULIC SURFACE GRINDER*
Table Travel: 120" - Longitudinal
36" - Cross
Maximum Distance Under Wheel: 36"
Wheel Size: 20" x 6"
Table Feed Rate: 0 - 1200 IPM
Table Cross In-Feeds Rate: 0 - 6 IPM
Incremental Power Down Feed Rate: .001 - .400 IPM
Electro-Magnetic Chuck w/Neutrofier (36" x 120")
Incremental Power Down Feed
Coolant System w/Magnetic Separator
Hydraulic Counterweight to Head
75 HP Main (Spindle) Drive Motor
Pendant Control w/Travatrol Incremental Electronic
Approximate Overall Dimensions: 297" L-R x 129" F-B x 143" H
Approximate Weight: 70,000 Lbs.
Serial Number: 20332
P2 F.O.B. Cincinnati, OH - $ 59,500.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
Email us at
Call our Sales Staff at
Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes.
Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power.
