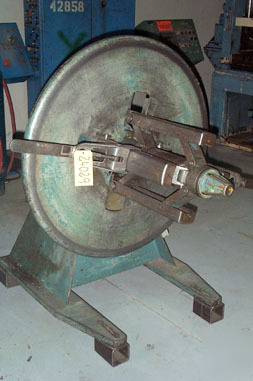

LITTELL MODEL 40-18 PLAIN AUTOMATIC CENTERING REEL*
Maximum Coil Weight Capacity: 4,000 Lbs.
Maximum Coil Width: 18"
Maximum Coil Outside Diameter: 45"
Inside Coil Diameter: 16" - 20"
Distance Floor to Center of Coil: 32"
(4) Arm Style Mandrel
Manual Mandrel Expansion
46" Diameter Backplate
Rheostat Brake Control
Approximate Overall Dimensions: 45" L-R x 54" F-B x 60" H
Approximate Weight: 1,500 Lbs.
Serial Number: 72499-63 (New 1963)
P2 F.O.B. Elk Grove, IL - $ 4,450.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
