Subject: L&j model no. 60, 60 ton back geared o.b.i. punch press

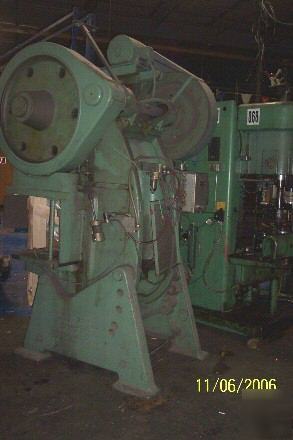

HERE WE HAVE A L&J NO. 60 BACK GEARED OPEN BACK INCLINABLE PUNCH PRESS.
CAPACITY IN TONS..................................................60
STROKE.....................................................................4"
STRUT HEIGHT..........................................................9"
ADJUSTMENT OF SLIDE...........................................3"
BED AREA OF BOLSTER (L TO R X F TO B)..............44" X 18"
STROKES PER MINUTE.............................................46 SPM
MOTOR HP.................................................................5 HP
WEIGHT APPROX......................................................8000 LBS.
EQUIPPED WITH SEARGENT AIR ACTIVATED SAFETY CONTROLS W/ FOOT SWITCH AND WOODBURY DEVICES OVERHEAD TYPE PULLBACKS.
THERE WILL BE A $50.00 LOADING FEE ON YOUR TRUCK.
