Subject: Japanese steakhouse restaurant ventilation hood system
Proven design specifically for Japanese Steakhouse. Features two 6' x 4'6" Stainless Steel Ventilation Hoods with make up air plenum between the two. One exhaust fan and one supply fan covers each two hood station. Fire suppression system and electrical pre-wire package conveniently mounted in utility cabinet on the end of each hood.
Please email for a freight quote and submittal drawing
54" x 24" EX-2 - 6ft 0" Long Exhaust-Only Wall Canopy Hood with Built-in 3" Back Standoff w/ 1 Factory installed 10 X 11" Exhaust Riser(s)
- Fire Cabinet on the Right Side
- FILTER - 16"x 16" Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- FILTER - 16"x 20" Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- 1/2 Pint Grease Cup New Style, Flanged Slotted

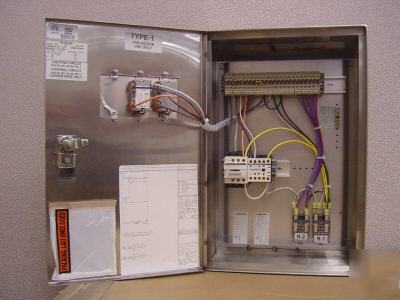

- Electrical Package Installation in Utility Cabinet by Plant.
54" x 24" EX-2 - 6ft 0" Long Exhaust-Only Wall Canopy Hood with Built-in 3" Back Standoff w/ 1 Factory installed 10 X 11" Exhaust Riser(s)
- FILTER - 16"x 16" Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- FILTER - 16"x 20" Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- 1/2 Pint Grease Cup New Style, Flanged Slotted
24" x 6" MISC-PSP - 6ft 0" Long SS Perforated Supply Plenum - ONLY. No Hood with this product.
- SUPPLY RISER - 14" Square to 12" Round Supply Collar with 12" Round Volume Damper. Nailor 1090 Series.
ANSUL-3.0 Ansul 3 gallon Fire System in Utility Cabinet (includes pre-piped hood(s) with detection, tank(s), release mechanism, microswitches and pull station)
- GAS VALVE - 1" Mechanical Shutoff Valve (Ansul)
DU85H High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (single phase only), disconnect switch and 15-3/4" wheel
Exhaust Fan handles 2400 CFM @ 0.625" wc. Fan runs at 1391 RPM.
Exhaust Motor: 0.750 HP, 1 Phase 115 V, 13.0 FLA, ODP (Open Drip Proof)
- GREASE CUP - Grease Cup for kitchen-duty centrifugal exhaust fans, Box Dimensions 15-3/4 L X 5-1/16 W X 3-3/4 H (18 GA.)
- Hinged Base for Curb. Hinge attached to curb.
NSA10D Direct Drive Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
Supply Fan handles 1900 CFM @ 0.250" wc. Fan runs at 779 RPM.
Supply Motor: 0.500 HP, 1 Phase 115 V, 6.8 FLA, ODP (Open Drip Proof)
Down Discharge - Air Flow Right -> Left
- Sloped Filtered Intake for Size #1 Standard Untempered Supply Unit. 22" Wide x 25.875" Long x 23.375" High. Includes 2" MV EZ Kleen Metal Mesh Filters.
11111002 120V/1Ph, W/ 1 Exhaust Fan, 1 Supply Fan, Exhaust in Fire
