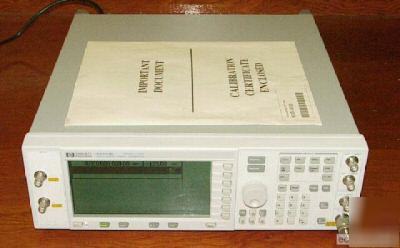

Includes any remaining manufacturer warranty. We also provide a 14 day warranty. HP\Agilent E4433B ESG-D Digital RF Signal Generator The E4433B RF signal generator offers a wide range of digital modulation capabilities for research and development, manufacturing, or troubleshooting applications. Providing a comprehensive feature set, it generates standard and custom digital modulation formats, filtering and burst shapes, as well as versatile analog modulation, with superior quality, and reliability. This unit has the following specifications: * Frequency range: 250 kHz - 4.0 GHz * Frequency resolution: 0.01 Hz * RF modulation bandwidth: Up to 35 MHz * Time base: <+/- 1 ppm/year * Output level: +13 dBm -136 dBm <1 GHz, +10 dBm -136 dBm 1 to 3 GHz, +7 dBm -136 dBm >3 GHz * Output resolution: 0.02 dB * Output level accuracy: ±0.5 dB * SSB phase noise (at 20 kHz offsets): -120 dBc/Hz at 500 MHz, -116 dBc/Hz at 1 GHz, -110 dBc/Hz at 2 GHz, -104 dBc/Hz >3 GHz * Harmonic spurious signals: <-30 dBc * 40 MHz sample rate and 14-bit I/Q resolution * Non-harmonic spurious signals: -75 dBc <1 GHz, -69 dBc 1- 2 GHz, -63 dBc >2 GHz * Custom digital modulation (>15 variations of FSK, MSK, PSK, and QAM), Wideband FM and phase modulation, AM and pulse modulation, and step/list sweep (frequency and power) * 1 Msample (4 MB) memory for waveform playback and 1 Msample (4 MB) memory for waveform storage * Built-in function generator Warranty Service & Return Policy: |
