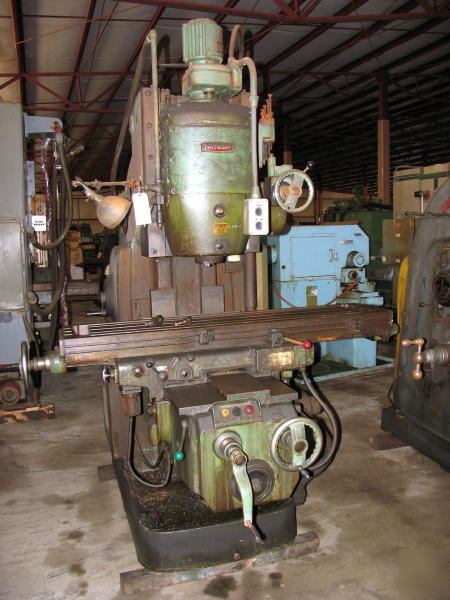

Hitachi vertical milling machine


Subject: Hitachi vertical milling machine
Longitudinal Table Travel: 33-7/8"
Vertical Knee Travel: 19-11/16"
Vertical Head Travel: 5-1/2"
Max. Dist. Spdl. Nose to Table Top: 24-3/16"
Dist. From Spdl. Center to Column: 16-1/2"
Spindle Speeds (16): 25 - 1,500 RPM
Table Feed Rates: 21/32 - 85 IPM
Rapid Traverse Rate: 164 IPM
Overall Size of Machine: 78" f-b x 80" l-r x 93" h
Weight of Machine, Approx.: 11,000 Lbs
15 HP Main Spindle Motor 220/440/3/60
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
