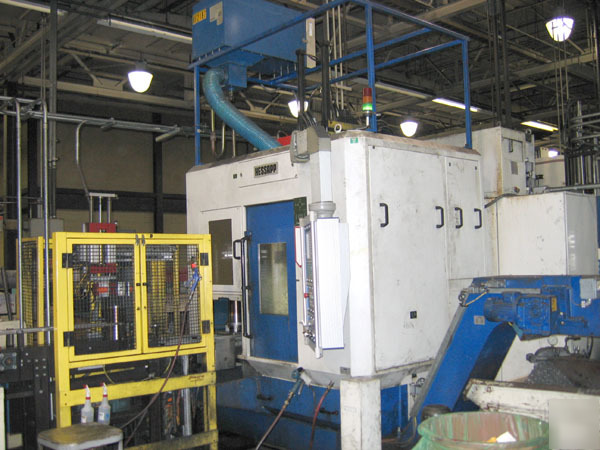

HESSAPP MODEL DVH 450 VERTICAL TURNING MACHINE*
Maximum Swing: 17.7"
Maximum Turning Diameter: 17.7"
Z-Axis Travel: 17.7"
Maximum Workpiece Height Including Clamping Device: 17.3"
Spindle Flange: DIN 55206
Spindle Nose: A-11
Main Drive Motor: 50 HP
Part Conveyor Entrance Opening: 27" Wide x 17" High
Indramat System 200 CNC Control
Approximate Overall Dimensions:
Serial Number: 83294 (New 1998)
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
