Subject: Hardinge lathe, no. dsv-59, 1 hp, 1969 (19830)

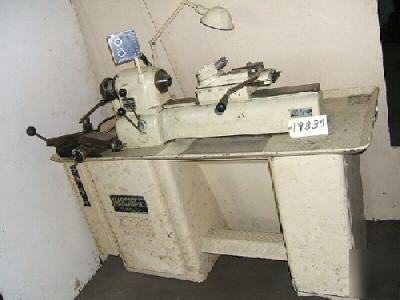

HARDINGE,Md.DSV-59,Dbl. Tool Cross Slide,Compound Slide,5C coll.,3500 rpm.Var.Sp Our stock number: 19830 Hardinge Lathe MODEL NUMBER.................................DSM-59
Hardinge Lathe SERIAL NUMBER................................DV-59-11112 YEAR: 1969
Hardinge Lathe GENERAL SPECIFICATIONS
Spindle......................................5C Collets
Swing Over Bed...............................9"
Length of Bed................................36"
Cross Slide.................................3-3/4"
Travel of Turret Silde.......................4"
Diameter of Turret Holes.....................5/8"
Variable Spindle Speeds......................230 to 3500 R.P.M.
1 H.P. 230-460V 60/3 Motor Drive
PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
