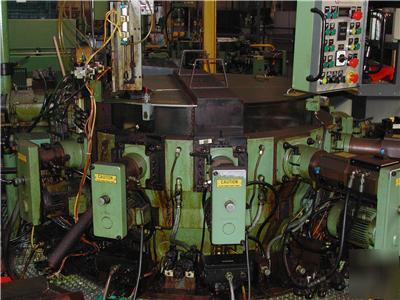

!LOOK! HS 12 HYDROMAT 1997 ROTARY TRANSFER!!!!! EXCLUSIVELY FROM MACHINE EXCHANGE!!! THIS UNIT IS STILL UNDER POWER AND MAY BE INSPECTED AT ANY TIME PLEASE CALL ME TO SETUP AN APPOINTMENT. THIS MACHINE HAS BEEN USED VERY LITTLE IN THIER MANUFACTURING OPERATION. DUE TO RECENT CHANGES IN THIER MANUFACTURING OPERATION THIS MACHINE IS BEING OFFERED TO YOU IN EXCELLENT SHAPE. THE COMPANY IS VERY MOTIVATED TO FREEING UP FLOOR SPACE FOR NEW EXPANSION IN THIER OPERATION. PLEASE CONSIDER THAT YOU ARE LOOKING AT THIS HYDROMAT THAT IS IN ALMOST NEW CONDITION!!! THAT WAS PURCHASED FOR OVER 1.2 MILLION DOLLARS IN 1996. SERIAL NUMBER HS12 YEAR MANUFACTURE 1997 EQUIPPED WITH BAR FEEDER HS MACHINE 12 FT. POWER RATING 3 PHASE 460 VOLTS 60 HZ POWER CONSUMPTION 50 FULL LOAD AMPS NUMBER OF STATIONS 12 HORIZONTAL CHUCK CAPACITY 4" CUBE-1-3/4 ROUND HYDRAULIC TANK CAPACITY 50 GALLONS TOTAL WEIGHT OF MACHINE 18,500 LBS MAX CAPACITY OF 1" BARS 8 PIECES COMBINED CHIP CONVEYOR AND COOLANT TANK EQUIPMENT AND FUNCTIONAL SPECIFICATIONS 1: BASIC MACHINE HS 12 HEAVY DUTY CAST IRON BASE 12 HORIZONTAL HAND SCRAPED TOOL SPINDLE MOUNTING PORTS REINFORCED WELDED BASE WITH DYAD VIBRATION DAMPER. HIGH PRECISION HYDRAULICALLY ACTUATED INDEXING TABLE WITH 12 CHUCKS. TABLE INDEXING AND LOCATION PROVIDED BY HYDRAULICALLY ACTUATED RACK AND PINION AND HIRTH TYPE MULTI-TOOTHED COUPLING. REPEATABILITY ACCURACY .0002". CONTROL FEATURE ALLOWS TABLE TO BE HALF-INDEXED TO PROVIDE EASE OF TOOL CHANGE. 1: HYDROMAT STANDARD ELECTRICAL CONTROL CABINET WITH G.E. 90 30 PROGRAMMABLE CONTROLLER AND IEC MOTOR STARTERS. CONTROL VOLTAGE: 115 VOLTS AC AND 24 VOLTS DC. 1: SWIVELING PENDENT OPERATOR CONTROL INCLUDING MESSAGE DISPLAY FOR TOTAL CONTROL OF THE MACHINE. 1: LEXAN CHIP GUARD AND RING ENCLOSE MACHINE TOOLING AREA. 3: TOOL SPINDLE UNITS VE36/100 40MM BEARING 100MM STROKE 1: TOOL SPINDLE UNIT 36/100 CF 40MM BEARING 100MM STROKE 2: ROUGH TURNING HEADS WITH 2 HOLDERS THR 83 USED WITH 30/60 SIZE SPINDLE UNIT FOR TURING AND DRILLING OPERATIONS. 11: INFINITE RAPID APPROACH VALVES 6: DRILL HEADS DH 84/40 USED WITH TOOL SPINDLE UNIT 45/80 COLLET ER 40 1: 2 SPINDLE HEAD BERGER, COMPLETE 12: SETS OF CHUCK JAWS (1 PAIR) 1: CUT OFF UNIT AE 250 QC, AE 250 WITH VALENITE QUICK-CHANGE 5: TOOL SPINDLE UNITS VE 20/80 20MMSPINDLE, 80 MM STROKE 8: DRILL HEADS DH 82/25 20/80 TOOL HOLDER COLLET ER25 1: TOOL SPINDLE UNIT 30/60 30MM SPINDLE-60MM STROKE 2: DRILL DETECTORS BK4 FOR STATION 7 3: UNIPOWER HPL TOOL MONITOR, FOR STATIONS 4,5,6 3: DURANT PRE-SETTABLE TOOL PROTECTION COUNTERS MODEL 4561 MACHINE IS PREPARED FOR PRODUCTION USING STANDARD CUTTING OIL. IF NEED MORE INFORMATION PLEASE CONTACT ME AT ONCE AND I WILL GET IT FOR YOU!!!! PLEASE FEEL FREE TO CONTACT ME AT ANYTIME EITHER BY E-MAIL OR PHONE. MY NUMBER IS MY NAME IS ERIC. ALL ITEMS CAN BE SEEN BY APPT. Finance Equipment For Your Business - Click Here |
