Goodman gas furnace, 4.0 ton, 70K btu, 93% (GMV90704CXA


Subject: Goodman gas furnace, 4.0 ton, 70K btu, 93% (GMV90704CXA

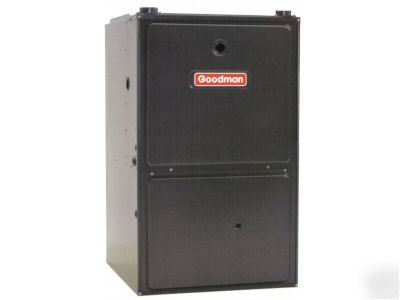

The Goodman® GMV9/GCV9 Two-Stage, Variable-Speed Gas Furnace features a patented aluminized-steel tubular heat exchanger and energy-efficient Hot Surface Ignition system. These furnaces are run-tested for heating or combination heating/cooling applications. With a corrosion-resistant, painted steel cabinet, these units can be installed in a variety of locations.
* Corrosion-resistant, aluminized-steel tubular heat exchanger and stainless-steel recuperative coil for maximum efficiency
* Designed for multi-position installation—GMV9: upflow, horizontal right or left; GCV9: downflow, horizontal right or left
* Energy-saving, reliable Hot Surface Ignition system, featuring a Norton® Mini-Igniter with patented adaptive learning algorithm to maximize igniter life
* Auto-Comfort mode helps to efficiently create and maintain a comfortable climate by intuitively adjusting to the room’s environment
* Aluminized-steel inshot burners
* 2-stage gas valve and super-efficient, quiet variable-speed blower motor
* Quiet, 2-speed, induced-draft blower assembly
* Integrated furnace control with diagnostics
* Low-voltage terminal blocks
* Multiple flame roll-out switches, blower door safety switch, outlet air-limit switch and pressure switch for proof of combustion air
* 40VA transformer for heating and air conditioning control service
* Top venting is standard; alternate flue/vent located on the right side (GMV9)
* All models comply with California NOx Standards
* Suitable for direct vent (2-pipe) or non-direct vent (1-pipe) applications
* Foil-face insulation lines the heat exchanger compartment
* Coil and furnace fit flush for easy installation
* Convenient left or right connection for gas and electric service
* Bottom or side air inlet (GMV9)
* Removable, solid bottom (GMV9)
* Heavy-gauge, reinforced, fully insulated steel cabinet with durable, baked-enamel, Architectural Gray paint finish
