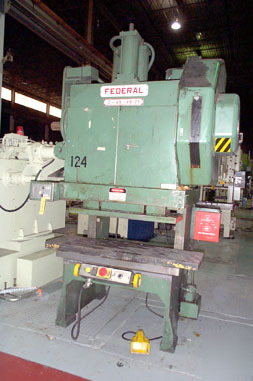

FEDERAL MODEL 2-45-48-21 DOUBLE CRANK, GAP FRAME PRESS*
Capacity: 45 Ton
Shut Height Over Bed (SDAU): 11"
Slide Adjustment: 2"
Bed Area: 48" L-R x 21" F-B
Slide Face Area: 42" L-R x 15" F-B
Throat Depth: 11-1/2"
Opening Trough Back: 35"
Distance Bed to Floor: 31"
Arranged for (2) F-B Knockouts
Speed: 120 SPM
Air Clutch and Brake with Selector Controls
Crankshaft Extension Left-Side
(2) Air Counterbalance Cylinders to Slide
T-Slotted Bolster Plate (60"L x 18-1/4"W x 2-1/2"Thick)
Bijur Automatic Recirculating Lubrication System
AC Main Drive Motor
Dual Palm Button Operation
Approximate Overall Dimensions: 73" L-R x 72" F-B x 125" H
Approximate Weight: 14,500 Lbs.
Serial Number: 2-45-106 (New 1987)
P2 F.O.B. Elk Grove, IL - $ 24,500.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
