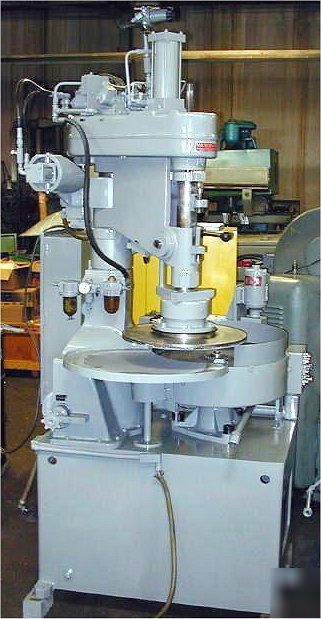

EX-CELL-O, MODEL 821-2, MICROMATIC LAPPING MACHINE
Model No. 821-2, Serial No. 152
This double surface microflat lapper is a 4-way, planetary type
lapping machine where the parts are held in place by (4)
carrier rings which then rotate the work in the same direction
but at a slightly different speed. A chain turns the carrier rings
about a stationary gear in the center of the wheels,
the parts rotate about their own centers and
around the centers of the wheels generating flat, parallel surfaces.
Diameter of Abrasive Wheels: 21" Diameter
Maximum Work Diameter: 3-1/2"
Overall Dimensions: 41" x 66" x 98" High
Machine Weight, Approx.: 2700 Lbs.
Automatic Upper Head Oscillator
3 HP Motor Drive 220/440/3/60
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
