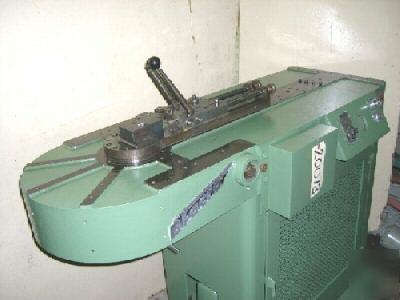

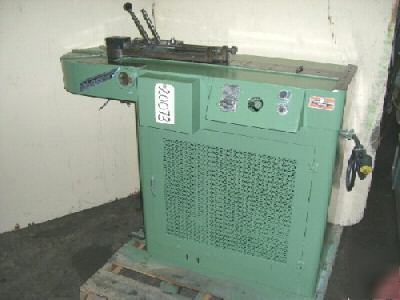

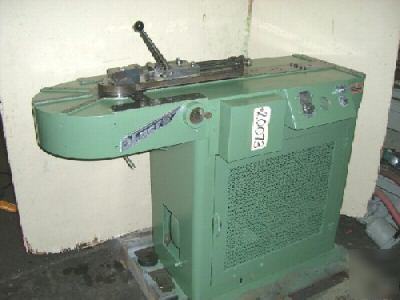

Diacro hydraulic bender, no. 6, 5 hp motor (20073)

UpUp


Subject: Diacro hydraulic bender, no. 6, 5 hp motor (20073)
DIACRO, Model No 6, 5 HP Our stock number: 20073 MODEL..................................No. 6
SERIAL NUMBER..........................Tag Missing
Bending Speed..........................6 to 12 RPM
Hydraulic Cylinder Bore................3-1/2"
Radius Capacity........................9"
Maximum Degree Of Bend.................280 Degrees
Hydraulic Pressure.....................1000 P.S.I.
Steel Tubing-16 Gauge..................1-1/4" O.D.
Standard Iron Pipe.....................3/4" I.P.S.
Flat Steel Bar-Edgewise................1/4" x 1"
Angle..................................1/8" x 1" x 1"
Channel................................1/8" x 1/2" x 1"
Approximate Weight.....................1000 Lbs.
