We are pleased to present the following for your consideration:

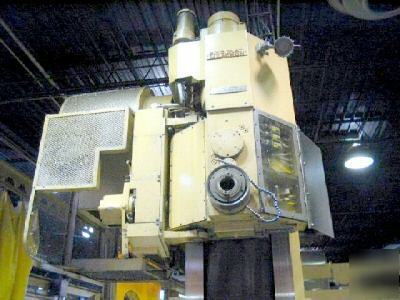

CINCINNATI 10HC-2500 CNC HORIZONTAL MACHINING CENTER
MAXIMUM PALLET LOAD 10,000 LBS
SPINDLE NOSE TO TABLE CENTER 5.36" - 35.36"
RAPID TRAVERSE RATE X, Y & Z AXIS 400 IPM
CUTTING FEED RATE 0.1 - 150 IPM
TOOL CHANGER CAPACITY 30 STATION ATC
MAXIMUM TOOL DIAM. (ADJ. EMPTY) 10.5"
MACHINE WEIGHT (APPROXIMATE) 40,000 LBS
APPROXIMATE FLOOR DIMENSIONS 276" x 210" x 151"
ACRAMATIC 900 CNC CONTROL WITH 10" SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION
EXTENDED Y AXIS TRAVEL TO 60" FROM 40" STANDARD
DC SPINDLE DRIVE, FULL LENGTH SUB PLATE ON TABLE
22" INTEGRATED 1º INDEXING CNC 4TH AXIS ROTARY
HP COMPUTER FOR DNC AND FILE TRANSFER USAGE
APPROXIMATELY 60 ASSORTED CAT 50 TOOL HOLDERS
4000 RPM SPINDLE, 30 STATION AUTO TOOL CHANGER
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
