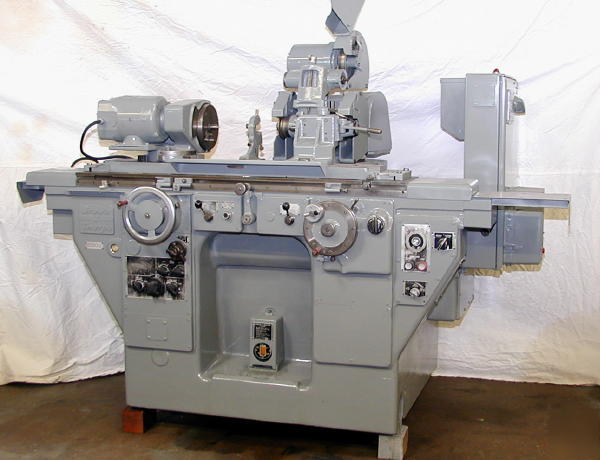

BROWN & SHARPE 1020U CYLINDRICAL GRINDER With I.D.
Model No. 1020U, Serial No. 521-1020-109
Grinding Wheel Size: 10" Dia. x 1/2" Wide
Grinding Wheel Speeds: 2500, 3000 & 3600 RPM
Table Longitudinal Feed Rates, Variable: 3 - 150 IPM
Table Travel Per Rev. of Handwheel, Slow: .1"
Table Travel Per Rev. of Handwheel, Fast: 2.5"
Table Dwells: 0 - 2-1/2 Seconds
Swivel Table Angular Adjustment: 8 Degrees
Table Cross Feed Rates: .0001" - .003"
Work Head Speeds, Variable: 60 - 600 RPM
Machine Weight, Approx.: 5,700 Lbs.
Combination Live/Dead Headstock
Swing Down Internal Grinding Attachment
1.5 HP External Wheel Motor ~ 220/440/3/60
1 HP Internal Wheel Motor ~ 1/4 HP Workhead Motor
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
