Subject: Brother cnc drilling milling and tapping center (19728)
MODEL...................................TC-229N
SERIAL NUMBER...........................111779 Year: 1996
Table Working Surface...................23.6" x 11.8"
Maximum Load On Table...................330 Lbs.
Table Longitudinal Movement (X-Axis)...18.9"
Table Crosswise Movement (Y-Axis)......14.2"
Spindle Head (Z-Axis)..................10.6"
Distance From Table Top To Spindle
Nose End...............................7" - 17.7"
Spindle Nose............................No. 3O
Spindle Speed (Max.)....................10,000 RPM
Max. Spindle Speed In Tapping...........6000 RPM
Cutting Feedrate, X, Y, and Z-Axis......0.2 - 393.7 IPM
Manual Feedrate, X, Y, and Z-Axis.......1.97 - 196.9 IPM (22 Steps)
Rapid Traverse, X and Y Axis............1417.3 IPM
Rapid Traverse, Z-Axis..................1181.1 IPM

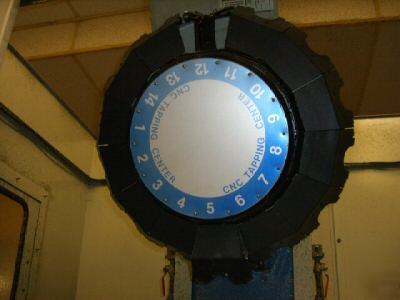

Automatic Tool Changer..................14 Tools
Tool Changing Time (Tool To Tool).......1.2 Sec
Tool Changing Time (Chip To Chip).......2.3 Sec
Operating Manual, Programming Manual, Installation Manual
Approximate Weight......................4000 Lbs.
SPECIFICATIONS SUBJECT TO VERIFICATION
