Subject: Asahi-seiki tp-25 transfer press

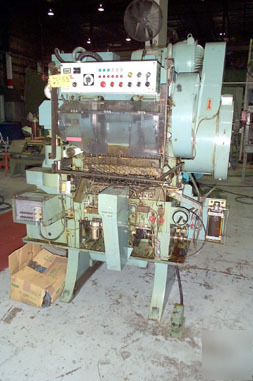

ASAHI-SEIKI MODEL TP-25 MECHANICAL TRANSFER PRESS*
Capacity: 28 Ton
Stroke: 2"
Number of Stations: 13
Shut Height (SDAU): 10"
Maximum Transfer Stroke: 3" Currently 2"
Maximum Material Width: 3-7/8"
Ram Width: 24-3/4"
Speed (Variable): 50 - 200 SPM
Air Clutch and Brake with Selector Controls
Cam Operated Solid Ram
Cast Iron Frame
EQUIPPED WITH:
Ram Position Indicator
(13) Station Die Set
Blanking Station
Transfer Mechanism (Cam Operated)
(6) Split Cam Lower Knock-Outs
Front - Rear Cross Motion Attachment
Oscillating Type Back Roll Feed System
Automatic Lubrication System
Mechanical Veriable Speed Drive
5 HP AC Main (Drive) Motor 220/3/60
Electrical Controls
Dual Push Button Operations
Approximate Overall Dimensions: 70" L-R x 50" F-B x 87" H
Approximate Weight: 10,000 Lbs.
Serial Number: 94112 (New 1990)
P2 F.O.B. Elk Grove, IL - $ 64,500.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
