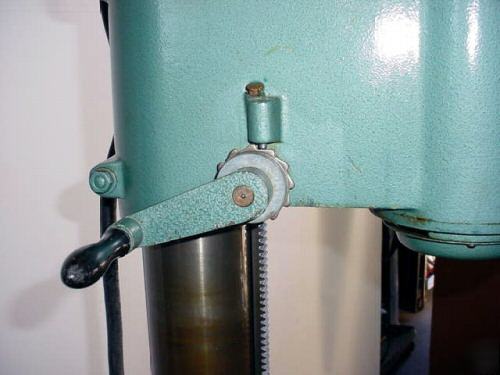

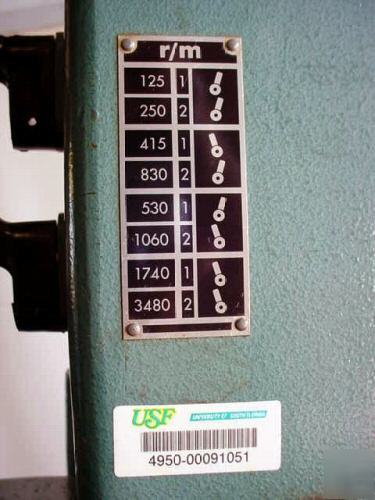

This is an Arboga Maskiner Drill Press; a Heavy Duty Drill of High Quality made in Sweden and is in excellent condition. Note the double clamp locks through a single lever on the head and table mechanisms. This Drill Press came from a local University and has seen little use. * Type BG 2508 / Serial # 245488 * 1-1/4" Drill Capacity - Mild Steel * Spindle 2-3/8 " Dia / #3 Morse Taper * Spindle has Quick Release for removing Drills/Chucks - Just move finger out of spindle groove and reverse the handle to free up the tool - see close up in second to last photo * 230 Volt / 3 Phase / 60 Hz / 2 Speed Motor / 1.14 HP/.94 HP (.85/.7 kw) / 3.5 Amp - Currently wired 220 single phase through phase converter. Phase Converter not part of this sale - see link to Phase Converter listing * (8) Spindle Speeds 125-3480 RPM through geared head levers - not pulleys * Jacobs Drill Chuck 0-1/2" Capacity * Maximum Table to Spindle Clearance 37-1/2" * Double Clamp Locks with Single Lever on the Head and Table - Head has Ratchet Type Safety Handle * Table working Dimensions 13" X 16" / Overall with through 15-3/4" X 19-3/4" * Table Vertical Adjustment 24-1/2" * Table Rotates & Locks 360 Degrees Any questions e-mail or call Brandon @ . Please include item number in all correspondence. No charge for packing, skidding or loading. See other items in our e-Bay store. Be sure to add me to your favorites list! |
