Subject: 80 ton, 5.5 oz. trubor injection molding machine '83

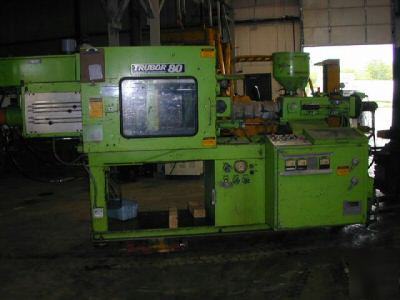

80 Ton, 5.5 Oz Trubor Injection Molding Machine
Platen Size ............................. 25' x 24'
Distance Between Tie Bars ....... 16 3/4" X 13 5/8"
Max. Open Daylight ............................ 23"
Min. Mold Thickness ............................ 8"
Clamp Stroke (Fully Adjustable) ............... 16"
Ejector Stroke ................................. 4"
Diameter of Tie-Bar ............................ 3"
