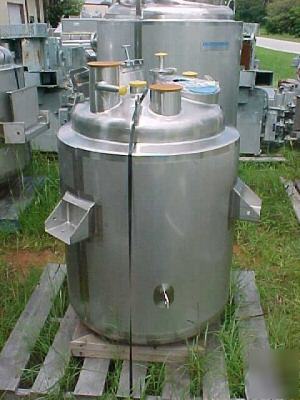

2EA 60 GAL PRECISION STAINLESS 316SS SANITARY INSULATED MIX TANKS MFG DATE 1995 - SN-1566-3 & SN-1566-4 - POLISHED INTERIORS - SPRAYBALL\CIP CONNECTIONS - DIMENSIONS- 27" DIA, 24" DOME TOP, 32" SIDE WALL, 36" OAD - BOTH VESSELS ARE RATED 14.9 PSI @ 250 DEGREES F - -20 F @ 14.9 PSI - LIFT LUGS - SHELL THICKNESS .135, HEAD THICKNESS .187 - 10" TOP MANWAY - OPENINGS: 4" TOP INLET, 4" CENTER BTM OUTLET - 8-BOLT SANITARY FLANGED OPENING FOR MIXER MOUNT - BOTH UNITS HAVE MEZZANINE MOUNTING BRACKETS PROBABLY USED FOR LOAD CELLS - BOTH UNITS ARE UN-USED\NEVER INSTALLED - LOAD CELLS ARE NOT INCLUDED WITH THESE TANKS-
|
