Subject: 6" natural gas turbine master meter station / run
ONE (1), 6" NATURAL GAS MASTER METER STATION (RUN) WITH DANIEL METER TUBE & DANIEL TURBINE METER & DIGITAL TOTALIZER
CAN BE PARTED-OUT AND PRICED BY COMPONENT, IF DESIRED; SUCH AS, THE TURBINE METER OR, METER TUBE SPOOLS OR THE FIVE (5) PLUG VALVES. IF INTERESTED IN A PART-OUT OF THIS METER STATION, CONTACT RON AT .
FYI: THE TURBINE METER COMPONENT BY ITSELF IS APPROX. $5,000 NEW; THE 6" PLUG VALVES ARE APPROX. $3,000 EACH, NEW, AND SO ON.
IN THE EVENT A TURBINE METER DOES NOT MEET YOUR APPLICATION, WE CAN CONVERT THE THIS METER STATION TO AN ORIFICE METER STATION FOR AN ADDITIONAL MUTUALLY AGREED TO AMOUNT.
METER TUBE MANUFACTURER: DANIEL INDUSTRIES, INC.
TURBINE METER MANUFACTURER: DANIEL INDUSTRIES, INC.

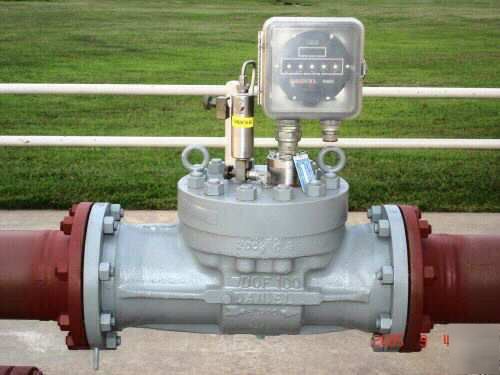

MODEL & DESCRIPTION: DANIEL MODEL 2011. 6" ANSI 150 RAISED FACE FLANGED DANIEL GAS TURBINE METER WITH CARBON STEEL BODY AND FLANGES, LEXAN ROTOR, STAINLESS STEEL BALL BEARINGS, PICKUP COIL & 1816-A PREAMPLIFIER WITH EXPLOSION PROOF ENCLOSURE, STAINLESS STEEL METER FACTOR TAG AND TURBINE BEARING OILER.
TURBINE METER FLOW CAPACITY: 36,000 CF/H.
TURBINE METER MAX. W. P.: 285 P.S.I.
TOTALIZER MANUFACTURER: DANIEL INDUSTRIES, INC.
METER STATION VALVES: 5- 6" OIC PLUG VALVES, P / N 17W. ALL PLUG VALVES HAVE ANSI 300 FLANGES AND STEM LUBRICATION POINTS. VALVES ARE RATED AT 500 P.S.I. WOG.
BYPASS RUN: METER STATION HAS A BYPASS RUN THAT CAN BE USED WHEN MAINTENANCE IS BEING PERFORMED ON MAIN RUN.
ASSEMBLED DIMENSIONS: LENGTH: 22' 9" ~ HEIGHT: 48"
We recently unpacked all of the components and again thoroughly cleaned all components inside and out, lubricated all plug valves and reassembled the meter station. All exterior surfaces had previously been primed and painted at the time it was originally installed. This original paint and primer was power brushed and sanded to remove any chipped or chalky coatings and then primed with Sherwin-Williams Brown Oxide Rust Resistant Industrial Primer. The meter run has no visible signs of pitting, inside or out.
This meter station is in excellent condition and is ready to be placed into service. This turbine meter is equipped with a pulse output and was previously interfaced with electronic flow measurement (computer measurement) equipment and can be configured in this way again.
THIS METER STATION CAN BE INSTALLED FOR INDUSTRIAL NATURAL GAS SERVICE OR IN NATURAL GAS GATHERING OR IN NATURAL GAS DISTRIBUTION APPLICATIONS.
