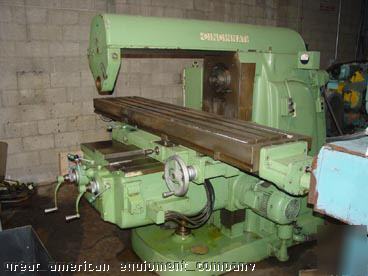

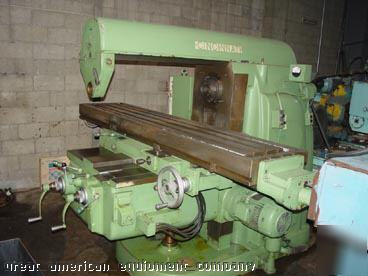

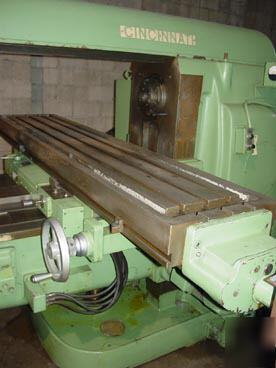

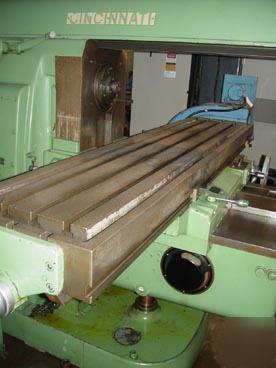

550-20 CINCINNATI PLAIN DUAL POWER HORIZONTAL MILL EQUIPPED WITH: Automatic Backlash Eliminator, Automatic Table Cycle, Arbor Support, Rear Controls, Knee Motor, Power Draw Bar, Coolant System. Table Dimensions = 20" x 94.5" Table Working Surface = 20" x 94.5" Longitudinal Table Travel (X-Axis) = 50" Vertical Knee Travel (Y-Axis) = 16" Cross Saddle Travel (Z-Axis) = 18" Spindle Speeds (24) Range = 14-1400 RPM Longitudinal & Cross Feeds (32) (X & Z Axis) = 3/8 to 90 IPM Vertical Feeds (32) (Y-Axis) = 3/16 to 45 IPM Rapid Traverse Rate, (X & Z-Axis) = 150 IPM Rapid Traverse Rate, (Y Axis) = 75 IPM Approximate Machine Dimensions = 135" x 163" Approximate Machine Height = 82" Approximate Machine Weight = 18,050 LBS Condition: Machine Appears to be in Excellent Condition! |
