Subject: 5" giddings & lewis table type horizontal boring mill

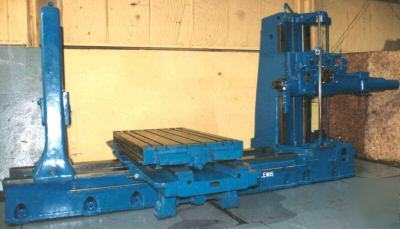

5" GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL
SERIAL ........................................ 5987
MODEL ......................................... 350T
DIAMETER OF SPINDLE ........................... 5"
AREA OF TABLE ................................. 84" X 48"
SPINDLE SPEEDS ................................ (45) 7-1/2 TO 950 RPM
SPINDLE FEEDS STANDARD SPEED .................. (18) .005 TO .250 IPM
SPINDLE FEEDS HIGH SPEED ...................... (18) .002 TO .120 IPM
TABLE, SADDLE AND HEAD FEEDS .................. (36) .0125 TO 25 IPM
CROSS TABLE TRAVEL ............................ 72"
SADDLE TRAVEL ................................. 84"
VERTICAL TRAVEL OF SPINDLE CARRIER ............ 48"
SPINDLE TRAVEL ................................ 36"
TAPER IN SPINDLE .............................. #6MT
OUTBOARD WAY SUPPORTS ......................... YES
OUTBOARD SPINDLE SUPPORT ...................... YES
MOTOR ......................................... 25 HORSEPOWER
CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
