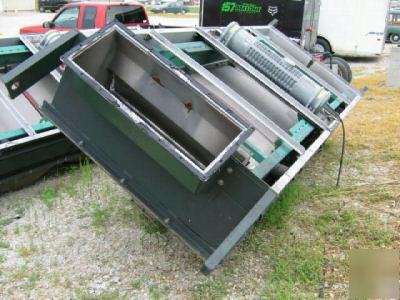

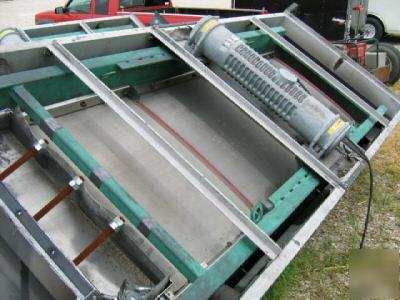

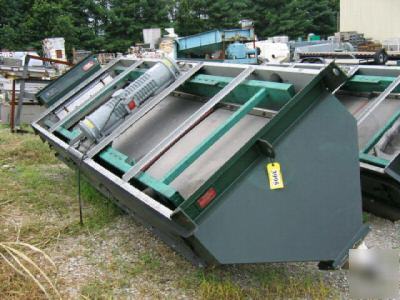

48” X 120” DERRICK SCREENER MODEL K48-120A-3S BUILT 11/10/1989. ORDER DRAWING # 7153-00-002. PARTS LIST 8994-00. ORDER # 53554-02. SCREENER IS 48” X 120” LONG; SCREENS ARE DESIGNED FOR SIDE REMOVAL. 4 OUTLETS ON BOTTOM OF SCREENER. CURRENTLY SCREENS ARE VERY FINE APPROXIMATELY 100 MESH OR FINER, STAINLESS STEEL. MACHINE AND SCREENS APPEAR TO BE IN VERY GOOD CONDITION. 1.5 HP DERRICK MOTOR, MODEL F5-36-460/480-6, 3600 RPM, 460/480 VOLT, 60 HZ, 2.5 FULL LOAD AMP, 1.2 IDLE AMP, S/N F993, OPERATING TEMPERATURE CODE IS T3C, 1.1 SERVICE FACTOR, WIRING DIAGRAM 1522-00-002. |
