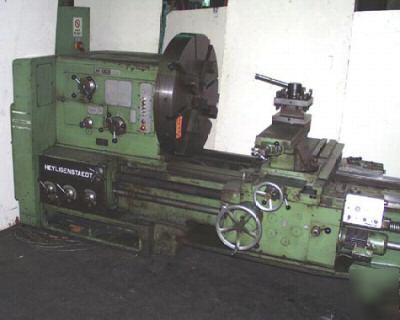

40" x 240" cc, HEYLIGENSTAEDT, 6-3/8" Hole, 710 RPM, Inch/Metric, 1978 Our stock number: 14740 Heyligenstaedt Lathe MODEL...................................505 Eb Heyligenstaedt Lathe SERIAL NUMBER...........................1850 8 0548 Year: 1978 Heyligenstaedt Lathe GENERAL SPECIFICATIONS Swing Over Ways.........................40" Swing In Gap............................43" Length Of Gap...........................18" Distance Between Centers................240" Swing Over Carriage.....................31" Max. Workpiece Load Load Between Centers, Unsupported...................13,860 Lbs. Spindle Bore............................6-3/8" Spindle Speeds..........................(24) 3.5 to 710 RPM Metric Thread Pitches................... .25 to 224 mm Whitworth Thread Pitches................1/8 to 112 TPI Module Thread Pitches................... .125 to 56 DP Thread Pitches.......................1/2 to 224 Feeds, Longitudinal..................... .045-180 mm/rev. Transverse....................... .0225-90 mm/rev. In Top Slide..................... .0225-90 mm/rev. Travel of Toolholder Slide On Swivel...13" Cross Travel of Carriage...............23-1/2" Rapid-Traverse Longitudinal............150 in/min Rapid-Traverse Transverse..............75 in/min Tailstock Quill Diameter................6.3" Tailstock Quill Travel..................11.8" Tailstock Center........................No. 6 MT Heyligenstaedt Lathe EQUIPPED WITH 40 HP (30 KW) Motor, 1760 RPM 220/60/3 Heyligenstaedt Lathe Approximate Weight......................25,000 Lbs. |
