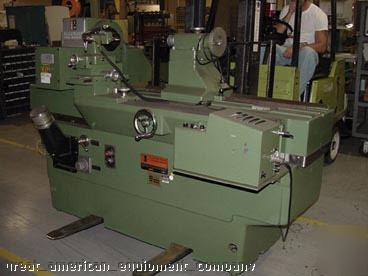

Please see the information below on a nice 3924A-2C Illinois Tool Works Helical Lead Measuring Instrument. This machine is coming out of an Aerospace Facility and is in excellent condition and is only available because of product line change. It is located in the Los Angeles, CA area and ready to go to work for you.. Please call Paul Trossman with any questions you may have at or feel free to email me at . ITW MODEL 3924A-2C HELICAL LEAD MEASURING INSTRUMENT EQUIPPED WITH: Vernac ITW Optical Screen, Sine Bar, Sine Bar Fine Setting Knob, Sine Bar Drive Switch, Table Drive Hand Wheel, Tailstock. Nominal Capacity...................................... 24" Maximum Gear Diameter................................. 25-3/4" Minimum Diameter...................................... 0 Maximum Center Distance............................... 36" Minimum Center Distance............................... 0" Maximum Table Travel Sine Bar at 0 Degrees............ 10-1/2" Maximum Angular Rotation Sine Bar at 90 Deg........... 140 Deg. Maximum Distance Work Can be Checked from Headstock Center................................. 36" Approximate Machine Dimensions........................ 82" x 48" Approximate Machine Height............................ 54" Approximate Machine Weight............................ 5,400 Lbs. Condition: Machine is from Aerospace and Appears to be in Excellent Condition! |
