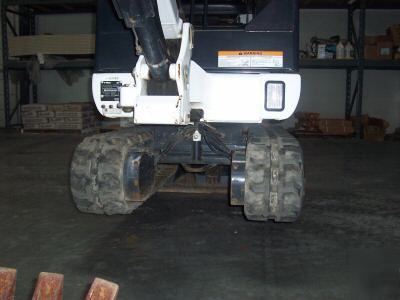

Premier Equipment Network Inc. is a Southern California used equipment dealer. We can be contacted @ . We are based in Redlands Ca. California residence will pay sales tax. The 323 Bobcat® compact excavator offers an impressive 12' 10" of ground level reach-more reach equals more production. The 323 is equipped with a variable displacement dual outlet piston pump/gear pump package; two-speed drive motors and an EPA Tier II compliant D722 diesel engine. Displacement: 43.9 cubic in (0.72 L) Max Dump Height: 100.3 in (2548 mm) Maximum Dig Depth: 90.4 in (2297 mm) Maximum Reach at Ground Level: 154 in (3912 mm) Bucket Digging Force: 3751 lbf (16685 N) Operating Weight: 3655 lbs (1658 kg) Travel Speed - Low: 1.4 mph (2.3 kmh) Travel Speed - High: 2.4 mph (3.8 kmh) Pump Type: Dual outlet piston, gear Pump Capacity: 11.4 GPM (43.2 L/min) Auxiliary Std Flow: 7.9 GPM (30 L/min) Hydraulic Reservoir: 1.7 gal (6.5 L) Track Width: 9.06 in (230 mm) Ground Pressure w canopy: 4.13 psi (0.28 BAR) Slew Clearance Circle, Rear: 42.1 in (1068 mm) Blade Width: 38.6 in (980 mm) Blade Height: 10.3 in (261 mm) Maximum Blade Lift (Above Ground): 7 in (179 mm) Maximum Blade Drop (Below Grade): 10.5 in (266 mm) |
