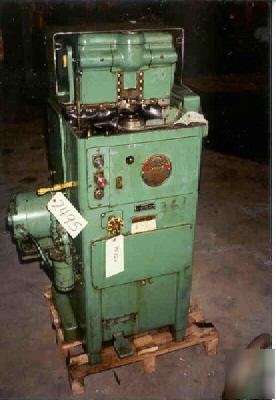

3" FELLOWS "FINE-PITCH" GEAR SHAPING MACHINE Foot Treadle Mechanism For Loading & Ejection Change Gears For (1) Set-Up (* Additional Gears Full Complement Of Electrics (Motors/Controls) Operator's Manual, Parts List, Wiring Diagrams Pitch Diameter, Maximum................ 3" Face Width Cut, Maximum................ .75" Diametral Pitch, Max. (Brass).......... 20 DP/0.85 MODULE Diametral Pitch, Max. (Non Ferr)....... 32 DP/0.79 MODULE Diametral Pitch, Max. (Steel).......... 40 DP/0.63 MODULE Machine Dimensions..................... 2'8" x 2'3" x 4'6" Machine Weight (Approx.)............... 1300 LBS NOTE: Suitable For The Cutting Of Fine-Pitch Straight Spur Gears Up To 3" (75mm) x .75" (20mm) Face-Width. PRICE: F.O.B. CINCINNATI OH........... $4,950.00 All machines/equipment subject to prior sale. |
