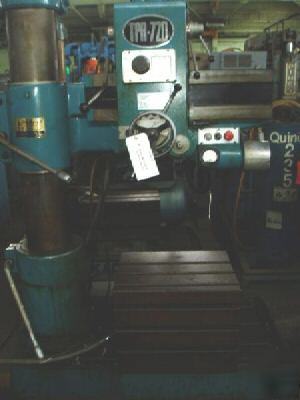

New 1987, Serial No 9588, Model TPR-720, Plain Box Table - Tapping Capabilities Plain Type Base - Power Arm Elevation Arm Length............................. 3' Column Diameter........................ 8" Drilling Capacity, Steel............... 1.5" Drilling Capacity, C.I................. 2" Tapping Capacity, Steel................ .625" Tapping Capacity, C.I.................. .875" Boring Capacity, Steel................. 2.75" Boring Capacity, C.I................... 4.125" Horizontal Head Travel on Arm.......... 20.69" Vertical Arm Travel on Column.......... 21.06" Vertical Spindle Travel in Head........ 8.25" Spindle-Nose to Base, Minimum.......... 12.59" Spindle-Nose to Base, Maximum.......... 41.94" Column-Face to Spindle, Minimum........ 7.47" Column-Face to Spindle, Maximum........ 28" Base Working Surface, W x L............ 24.81" x 35.16" Spindle Taper.......................... #4 MT (12) Spindle Speeds, Range............. 88 to 1500 RPM (3) Spindle Feeds, Range............... .003 to .009 IPR Motor, Horsepower...................... 2 HP Feed Motor, Horsepower................. 1 HP Weight, Approximately.................. 2600 LBS PRICE: F.O.B. OUR WAREHOUSE............ $3,950.00 All machines/equipment subject to prior sale. |
