Subject: 28 ton, 1.45 oz. arburg injection molding machine'88

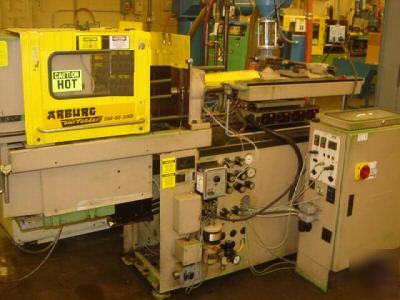

28 Ton, 1.45 Oz Arburg Injection Molder
Model: Allrounder 221-55-250 Year: 1988
Platen Size.......................... 13.46" x 9.84"
Distance Between Tie Bars .............. 8.7" x 8.7"
Maximum Mold Size .................... 8.66" x 9.84"
Daylight .................................... 19.69"
Adjustable Mold Opening Stroke ....... 2.36" - 7.87"
Mold Height .......................... 5.9" - 11.81"
Max. Stroke of Hydraulic Ejector ............. 2.36"
Heater ........................................ 4 HP
Pump Motor .................................... 8 HP
Total Load ................................... 13 HP
Machine Weight .......................... 2,048 lbs.
