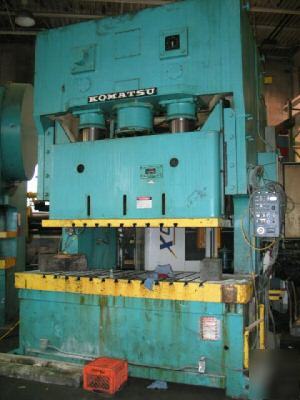

275 TON KOMATSU #OBW-250-2 DOUBLE CRANK GAP FRAME PRESS (M#7354) Capacity: 275.58 U.S. Tons (250 Metric Ton) Shut Height slide to bolster (SDAU): 21.65 Slide Adjustment: 4.72 (120mm) Bed Area: 106.3 LR x 37.40 FB (2700mm x 950mm) Slide Area: 82.68 LR x 27.56 FB (2100mm x 700mm), T-Slotted Pneumatic Wet Clutch and Brake w/ Selector Controls Air Counterbalance Cylinder to Slide T-Slotted Bolster Plate (7.09 Thick) AC Main Eddy Current Drive Motor Approx. O.A. Dimensions: 120LR x 100FB x 164H Inspect under power in our Detroit area warehouse. Warranty and Leasing Options Available |
