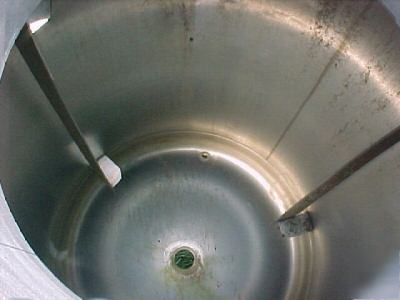

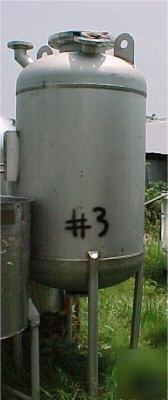

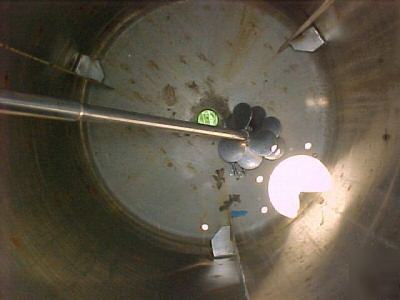

1ea 255 Gal Gal Hicks Eq Stainless 316L Pressure Homogenizing Mix Tank Sn-5-944011-1 Mfg Date 1994 - Max Working Temp: 119PSIG @ 100 F - Min Design Temp: -20f @ 119 PSI - No mixer shaft or Drive Unit - Shell Thickness .250" - Head Thickness .375" - Head Dish Radius 36" - NB#154 - 19" Diameter 12 Bolt Flanged Top Manway with a 12" Diameter Opening - 33" Diameter Vessel - 1ea 9" Flanged 8 Bolt Top 4" Opening - 1ea 7.5" Flanged 4 Bolt Top 3.5" Opening - 1ea 3" Bottom Center Discharge with 7.5" Flanged 4 Bolt Connection - 12" Deep Dished Bottom Head - 42" Side Straight Wall - Over All Height w\Legs 100" - Marked #3
|
