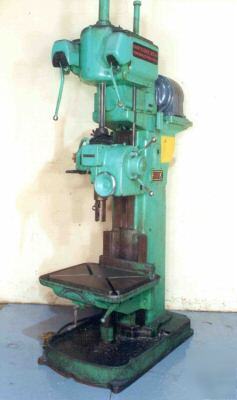

25" FOSDICK SINGLE SPINDLE DRILL SERIAL ..................................... 17183 MODEL ...................................... 25´´ BOX COLUMN SPINDLE TO LOWER COLUMN .................... 12-1/2´´ SPINDLE TO UPPER COLUMN .................... 12´´ SPINDLE TO TABLE (MAXIMUM) ................. 34´´ TABLE AREA (T-SLOTTED) ..................... 24´´ X 19´´ VERTICAL TABLE TRAVEL ...................... 16´´ VERTICAL HEAD TRAVEL ....................... 18´´ SPINDLE STROKE ............................. 12´´ SPINDLE TAPER .............................. #4 MT SPINDLE SPEEDS ............................. (12) 60 TO 1500 RPM SPINDLE FEEDS .............................. (9) .005 TO .043 IPR SPINDLE DIAMETER ........................... 3´´ CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! |
