Subject: 245 gal - stainless steel vertical jacketed tank

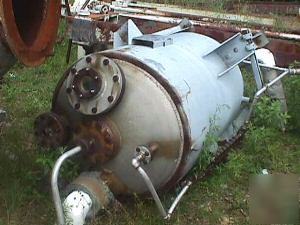

E-1766 245 gal VERTICAL JACKETED TANK
Model/serial no. Mfg.# L-16886.45/JKT. PENSACO MN 78001-1978
Manufacturer RICHMOND ENGINEERING INC
Dimensions 36" x 50"/6" DT and DB
Construction/configuration 304 stainless steel with c/s jacket, vertical
PSI:Jkt:in Tank = 45 psi @ 400 F Jacket = 25 psi @ 100 F
Inlets/outlets 4" top inlet, 3" top inlet, 7" top center inlet, 1 1/2" bottom center outlet, 4" bottom outlet, (2) 1 1/4" side jacket inlet and out, 1/2" side jacket out, 8" top inlet w/4" sight glass, 1 1/4" top inlet, 1 1/4" bottom outlet
General data (4) 7 1/2" x 10" gussets - very good condition
