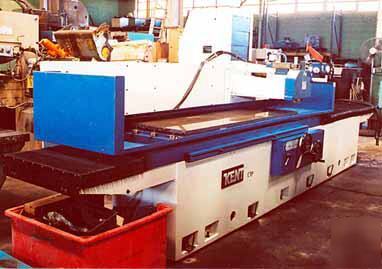

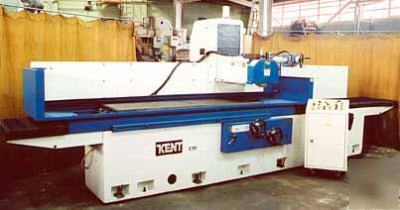

24" x 80" KENT MODEL KGS-620AHD COLUMN TYPE HYDRAULIC HORIZONTAL SURFACE GRINDER Motor Driven With 10 HP, 3 Phase, 60 Cycle AC Spindle Drive. 5 HP, 3 Phase, 60 Cycle, AC Hydraulic Pump. AC Motors For Wheelhead Raise And Lower, Power Cross Feed And Coolant System. Automatic Incremental Downfeed. 24" X 40" Electromagnetic Chuck And Control Hydraulic Table And Electronic Cross Feed. Hydraulic Over The Wheel Dresser. Automatic Lubrication. Magnetic Separator And Paper Filter Coolant System. Grinding Wheel Diameter x Width x Bore: 14" x 2" x 5" Distance from Spindle Center to Table (Max.): 23.625" Maximum Workpiece Weight: 2,650 lbs Longitudinal Hydraulic Feed Rates: 13 - 73 FPM Hand Feed per Revolution/Graduation: .02 to .5 Cross Feed Raid Traverse Rate: 60 IPM Hand Feed per Revolution/Graduation: .2"/.001" Vertical Power Down Feed Range (6): .0002" - .0016" Handfeed per Revolution/Graduation: .02"/.0001" Vertical Rapid Feed Rate: 6 IPM Approximate Floor Space: 312" x 100" Approximate Weight: 14,000 lbs |
