Subject: 24" x 120" mori seiki engine lathe 10 hp 1205 rpm

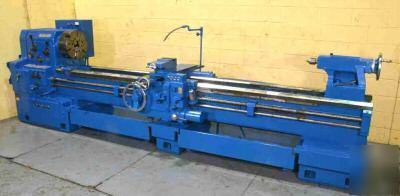

24" X 120" MORI SEIKI ENGINE LATHE
SERIAL ........................... 3945
MODEL ............................ MH3000
YEAR NEW ......................... 1980
SWING OVER WAYS .................. 25"
DISTANCE BETWEEN CENTERS ......... 120"
SWING OVER CROSS SLIDE ........... 16"
SPINDLE SPEEDS ................... (12) 27 TO 1205 RPM
DIAMETER OF SPINDLE HOLE ......... 3"
THREADS (ENGLISH) ................ (40) 2 T0 80 TPI
FEED (ENGLISH .................... (40) 0.0015 TO 0.0433 IPR
THREAD (METRIC) .................. (40) 0.5 TO 14 TPMM
FEEDS (METRIC) ................... (40) 0.039 TO 1.10 PRMM
CHUCK ............................ 15" 3 JAW
RAPIDS TRAVERSE .................. YES
THREAD DIAL ...................... YES
COOLANT WITH CHIP PANS ........... YES
FORWARD & REVERSING .............. YES
SPINDLE NOSE ..................... D1-8
TAPER IN TAILSTOCK ............... #5 MT
MOTOR ............................ 10 HORSEPOWER
CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
