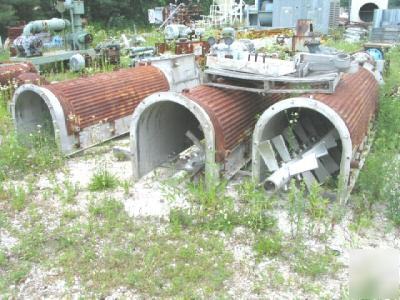

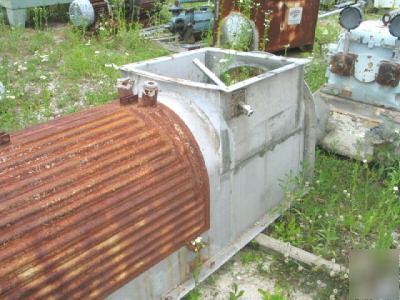

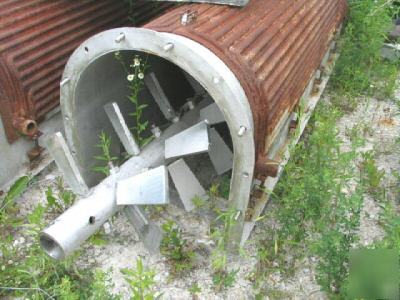

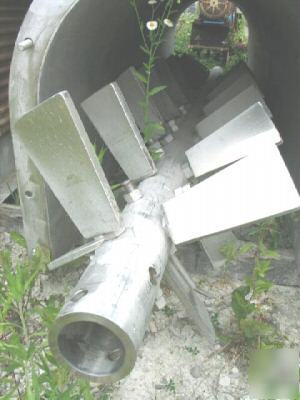

24" x 30' LONG, STAINLESS STEEL PADDLE MIXER 30' LONG WITH THREE 10' SECTIONS, 3.5" DIAMETER COUPLING, 25" SQUARE FLANGED OUTLET, ONE PADDLE EVERY 3" OF SHAFT LENGTH; PADDLES ARE 9" X 4" X 3.25" TRAPEZOIDAL. PADDLE THICKNESS IS 5/8". ALL STAINLESS STEEL BOLTS; STAINLESS STEEL END PLATE AND HANGER BEARINGS. PANEL COIL CLAMP-ON HEAT TRANSFER PANELS. OPEN TOP. DRIVE MOTOR IS 10 HP, 1740 RPM, 215T FRAME WITH SYNCROGER INLINE GEAR REDUCER FOR CHAIN DRIVE. CHAIN AND GUARD ARE NOT INCLUDED. APPEARS TO BE MISSING ONE HANGER BEARING AND ONE END PLATE. |
