Subject: 24" wide x 15' long stainless steel screw 1703

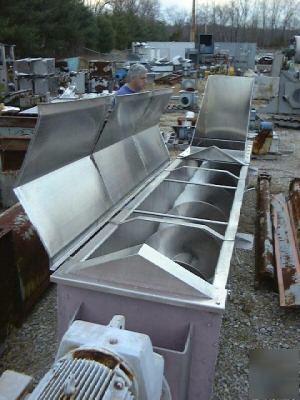

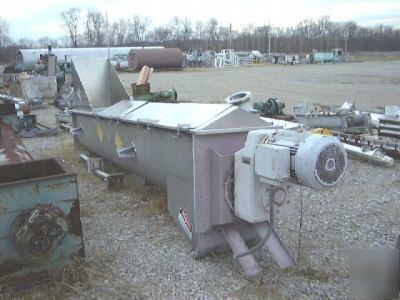

24 X 15 LONG STAINLESS STEEL SCREW:
FOOD GRADE. EXCELLENT CONDITION. UNIT IS 24 DIAMETER WITH NO INTERNAL HANGER BEARINGS. PIPE DIAMETER APPEARS TO BE APPROX. 6 DIAMETER. SHAFTING APPEARS TO BE 3.5 MINIMUM. ALL WELDS CONTINUOUS BOTH SIDES AND GROUND SMOOTH. MOTOR AND GEAR REDUCER ARE EURODRIVE, 20 HP, WITH FINAL SPEED OF 72 RPM. DRIVE IS ON DISCHARGE END. REDUCER IS HOLLOW SHAFT AND MOTOR MOUNTS DIRECT TO GEAR REDUCER.. TORQUE RATING IS 17500 IN-LB AND RATIO IS 24.17. EXCELLENT CONDITION. LOOSE HINGED SECTIONAL COVERS, ALSO STAINLESS STEEL. MANUFACTURED BY AMERICAN PROCESS EQUIPMENT. SERIAL NUMBER 1952; MODEL NUMBER 24DS. INLET IS 46 X 24; OUTLET ON DRIVE END AND IS 27 X 24. EXCELLENT CONVEYOR.
