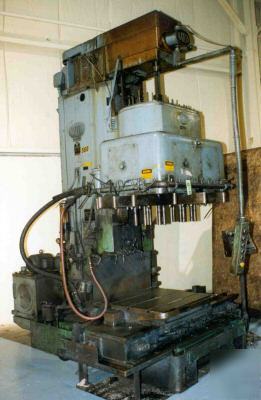

24 SPINDLE NATCO #G316 MULTIPLE SPINDLE DRILL SERIAL .............................. G316-175 MODEL ............................... G316 YEAR NEW ............................ 1976 NUMBER OF SPINDLE ................... 24 PINDLE SPEEDS ....................... (36) 140 TO 2376 RPM DIAMETER OF UPPERS .................. 1-1/2´´ OUTSIDE DIMENSION OF HEAD ........... 46´´ X 34´´ INSIDE DIMENSION OF HEAD ............ 34´´ X 20´´ TRAVEL OF HEAD ...................... 18´´ AREA OF BASE ........................ 36´´ X 36´´ AREA OF TABLE ....................... 32´´ X 30´´ LONGITUDINAL TRAVEL OF TABLE ........ 36´´ MAXIMUM DISTANCE SPINDLES TO BASE ... 60´´ 2 SPEED NECK ........................ YES 3 SPEED HEAD ........................ YES AUTO DRILL CYCLE .................... RAPID FEED/RETURN STEP DRILLING ....................... YES COOLANT ............................. YES SPINDLE DRIVE MOTOR ................. 15 HORZEPOWER CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! |
