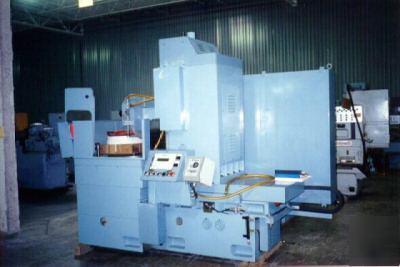

24", NIAGARA FALLS, No. ROT24, Tilt Tbl., Programm D.F., Coolant System, 1994 Our stock number: 13848 Niagara Falls Rotary Surface Grinder MODEL: ROT24 Niagara Falls Rotary Surface Grinder SERIAL NUMBER: C736 Year: 1994 Niagara Falls FACTORY SPECIFICATIONS Table Diameter..........................25" Max. Diameter of Work To Be Ground......25" Max. Height of Work Piece...............14" Distance From Spindle To Table, Min. ...8" Distance From Spindle To Table, Max. ...22" Column Travel...........................17" Table Tilt, Concave.....................5 Degrees Convex......................3 Degrees Wheel Size..............................20" x 3" x 8" Spindle Motor...........................15 HP Length................................112" Width.................................64" Height................................104" Niagara Falls STANDARD EQUIPMENT Coolant System With Magnetic Separator-80 Gallons Operator Station With Push Buttons And An Acroloop Niagara Falls Rotary Surface Grinder DESIGN FEATURES Tilt Table For Convex And Concave Grinding Pressure Lube With Automatic Shut-Off If Lube Fails Table Speed Varies According To Wheel Position Diamond For Wheel Dressing Is Mounted Off The Table. Our Control Allows to Compensate For The Amount Of Dress. The Wheel Head Is Automaticlly Lowered After The Dress Cycle. Servo Motors For Cross And Head Travel Control Panel For Easy Operator Access Niagara Falls Rotary Surface Grinder MACHINE FEATURES A Massive And Rigid Casting of Stress Releived Meehanite Iron Coupled With A Well Ribbed Box Form Which Allows For Rigidity And Precision Grinds. Column Is Mounted On The Bed Ways Which Has Teflon Coated "V" And Flat Ways And Is Driven By A Heavy Duty Servo Motor Through A The Precision Heavy Duty Table is Supported By Anti-Friction Bearing Ways. Smooth Rotation Is Insured Through The Servo Drive Motor And Head Vertical Feed Consists Of A Worm Gear Box Driven By Means Of A Precision Ball Screw Drive. This System Provides Automatic, Intermittent And Fine Feeds by Means Of A Heavy Duty Servo Motor And Also Provides Rapid Traverse. A Cartridge Type Heavy Duty Spindle With Pre-Loaded Precision Angular Contact Bearings And Precision Balanced Spindle Motor Which Insures Extra Fine Finishers. Niagara Falls Rotary Surface Grinder Approximate Weight, 12,000 Lbs. NOTE: Grinder Appears To Have Had Little Use And Is In Excellent Condition. All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS. All items are offered locally and could be sold previous to end of store listing. |
