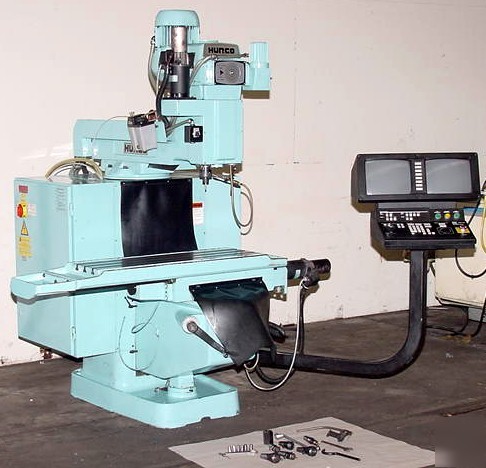

24" CNC VERTICAL MILL, Hurco KM3P Ultimax II
24" CNC VERTICAL MILL, Hurco KM3P Ultimax II
HURCO 3-AXIS CNC KNEE-TYPE VERTICAL MILL,
MODEL: #KM3P, S/N: KDB-9003110E, NEW 1991
TABLE SIZE ...................... 14 X 49
T-SLOTS ......................... 3 X 0.625
ON ........................ 2.95 CENTERS
TABLE LOAD ...................... 750 LBS.
X-AXIS TRAVEL (LONGITUDINAL) .... 24
Y-AXIS TRAVEL (CROSS TABLE) ..... 14
Z-AXIS TRAVEL (QUILL) ........... 5
KNEE TRAVEL (MANUAL) ............ 15.5
RAM TRAVEL ...................... 14
LOW ....................... 60-499 RPM
HIGH ...................... 500-4,000 RPM
TRANSMISSION 2-SPEED BACK GEAR WITH MANUAL CHANGE
SPINDLE NOSE TO TABLE DISTANCE .. 17.25 (MAXIMUM)
TAPPING CAPACITY ................ 7/8
DRILLING CAPACITY (MILD STEEL) ..
MILLING CAPACITY (MILD STEEL) ... 2.5 CUBIC INCHES/MINUTE
MAXIMUM CUTTING FEDERATE ........ 150 IPM
RAPID FEDERATES ................. 0.1-250 IPM
APPROXIMATE MACHINE WEIGHT ...... 3,800 LBS.
APPROXIMATE DIMENSIONS .......... 101 X 111 X 83
- ULTIMAX II SPLIT SCREEN CNC CONTROL (8.5 SOFTWARE VERSION)
- UNIVERSAL #200 KWIK-SWITCH SPINDLE
- INCLUDES 7 TOOLHOLDERS PLUS COLLETS SHOWN IN PHOTOS
Machine Location: HARRISON, NJ
