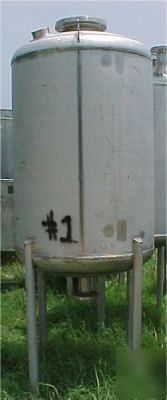

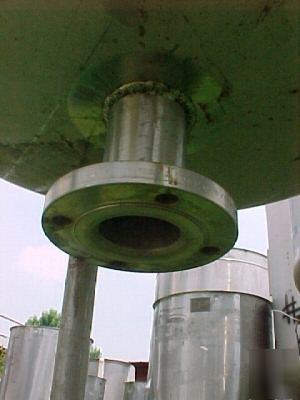

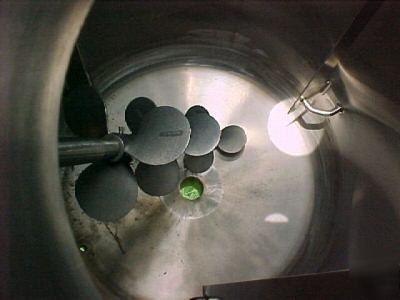

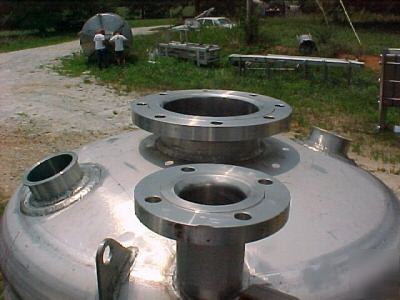

1ea 225 Gal Precision Stainless 316L Pressure Homogenizing Mix Tank Sn-3564 Mfg Date 1994 - PO# 19594 - Mfg SN 5402 - Item V550 - Drawing No.45730D - Train 5 Homoginizer Tank - Max Working Pressure: 119PSIG @ 100 F - Min Design Temp: -20f @ 119 PSI - Interior Baffles 3ea - Shell Thickness .250" - Head Thickness .375" - Head Dish Radius 36" - 12 Bolt Flanged Top Manway - Mixer Shaft & 3ea 3 bladed Props Style Agitation- Top Lifting Lugs - 19" Diameter 12 Bolt Flanged Top Manway - 14" Diameter 8 Bolt Mixer Flange thru Manway & 8.5" Opening - 2ea 8 Bolt Flanged Top Openings with 3.75" Openings - 1ea 4 Bolt Flanged Top Opening with a 3" Threaded Opening - 1ea 4 Bolt Flanged Top Opening with a 3" Threaded Opening - No Drive Unit - Marked #1 -
|
