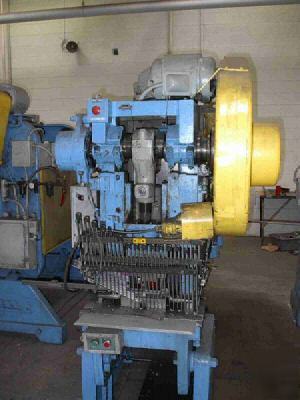

22 ton bliss o.b.i. press #24088

UpUp


Subject: 22 ton bliss o.b.i. press #24088
New 1971, Serial No. H64179 HP48248, Model C22
Air Assisted Rolling Key Mechanical Clutch
Remote Foot Pedal Clutch Control
Tonnage Capacity....................... 22 TON
Stroke Length.......................... 1-1/2"
Shut Height to Bed, (SDAU)............. 10-3/4"
Ram Adjustment......................... 2-1/4"
Slide Area, L-R x F-B.................. 10-1/4" x 8-1/8"
Bolster Area, L-R x F-B................ 23-1/2" x 14"
Bolster Thickness...................... 1-1/4"
Stemhole In Slide, Diam x Depth........ 1-1/2" x 2-1/2"
Distance from Bed to Gibs.............. 12"
Incline Positions, Degrees............. 10-20-30-DEGREES
Strokes Per Minute, Maximum............ 230 SPM
Drive Motor, Horsepower................ 2 HP
Electrical System...................... 220-440/3/60
Overall Dimensions, W x D.............. 3'9" x 5'
Overall Height......................... 7'
Weight, Approximately.................. 3650 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $2,950.00
All machines/equipment subject to prior sale.
