Subject: 21" x 60" okuma engine lathe, no. ls, 10 hp (19392)

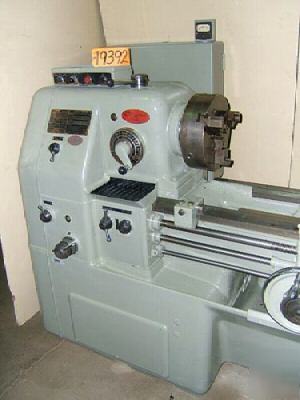

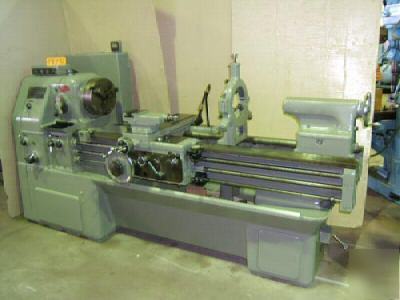

21" x 60" cc, OKUMA, No. LS, 35-1800 RPM, Inch/mm, Steady Rest, 10 HP, Clean Our stock number: 19392 Okuma Engine Lathe MODEL...................................LS
Okuma Engine Lathe SERIAL NUMBER...........................4309-13489
Okuma Engine Lathe GENERAL SPECIFICATIONS
Swing Over Bed..........................21-1/4"
Swing Over Bed, In Front of Faceplate...22-3/4"
Swing Over Cross Slide..................13-3/4"
Distance Between Centers................60"
Diameter of Bore in Spindle.............2"
Spindle Speeds..........................(12) 35 to 1800 RPM
Spindle Nose............................A-1-6"
Number of Feed Changes..................32
Range, Longitudinal Feeds............... .001 to .028
Range, Cross Feeds...................... .001 to .014
Inch...................................4 to 56 TPI
Metric................................. .5 to 7 mm
DP.....................................8 to 112
Module................................. .25 to 3.5
Cross Slide Travel......................10-5/8"
Compound Rest Travel....................5-1/2"
Tailstock Spindle Travel................5-7/8"
Tailstock Taper.........................No. 4 MT
Okuma Engine Lathe EQUIPPED WITH
Okuma Engine Lathe Approximate Weight......................5500 Lbs.
