Subject: 21" x 120" clausing-colchester engine lathe #24218

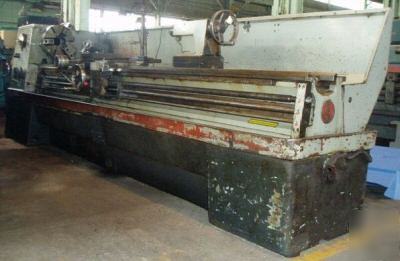

21" x 120" CLAUSING-COLCHESTER ENGINE LATHE
New 1972, Serial No 8/0069/01187,
Acu-Rite 2-Axis DRO (1 Scale On Crosslide)
Threading (Inch-Metric Full-Length Lead Screw)
Threading Dial - 4-Way Tool Post
Full Length Coolant-Chip Pan and Coolant System
Hole Thru Spindle...................... 3.5"
Swing Over Bed Ways, Rated............. 21"
Swing Over Cross-Slide................. 14.5"
Distance Between Centers............... 120"
Cross-Slide Cross-Feed Travel.......... 11"
Tailstock, Spindle Taper............... #5 MT
(16) Spindle Speeds, Range............. 18 to 1400 RPM
Carriage Longitudinal Feeds............ .002 to .032 IPR
Cross-Slide Cross Feeds................ .001 to .016 IPR
(38) Thread Changes, Range............. 2 to 72 TPI
(40) Metric Pitches, Range............. .4 to 14 MM
(18) Metric Modules.................... .3 to 3.5 MOD
(27) Diametral Pitches................. 8 to 60 DP
Main Motor, Horsepower................. .5 HP
Overall Dimensions, L x D.............. 15' x 5'
Overall Height......................... 4'6"
Weight, Approximately.................. 5750 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $14,500.00
All machines/equipment subject to prior sale.
