Subject: 21" x 100" clausing colchester engine lathe (19319)

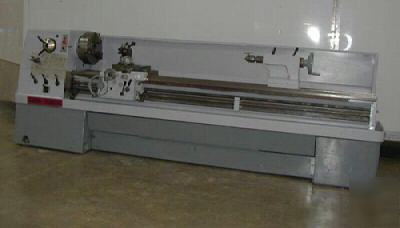

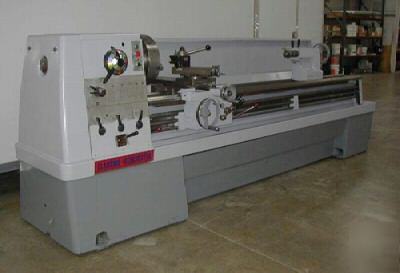

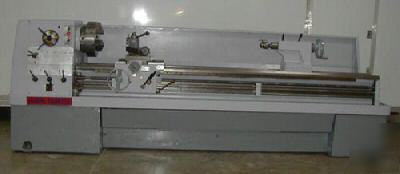

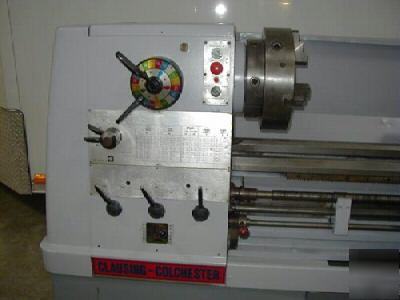

21" x 100" cc, CLAUSING COLCHESTER, 18-1400 RPM, Inch/mm, 3.5" Hole, 1975, Clean Our stock number: 19319 Clausing Colchester Engine Lathe MODEL...................................21" Series 8100
Clausing Colchester Engine Lathe SERIAL NUMBER...........................No. 8/0017/02643
Clausing Colchester Engine Lathe GENERAL SPECIFICATIONS
Swing Over Bed..........................21"
Swing Over Cross Slide..................14-1/2"
Bar Capacity Thru Spindle...............3-1/2"
Distance Between Centers................100"
Spindle Nose............................11" D-1 Camlock
Hole Through Spindle....................3-9/16"
Spindle Center..........................5 M.T.
Spindle Speeds..........................(16) 18 to 1400 RPM
U.S. Standard Threads...................(38) 2 to 72
Metric Threads..........................(40) .4 to 14
Longitudinal Feeds......................(45) .002" to .032"
Cross Feeds.............................(45) .001" to .016"
Cross Slide Travel......................11"
Tailstock Spindle Diameter..............2-15/16"
Tailstock Center........................5 M.T.
Tailstock Spindle Travel................8-1/2"
Clausing Colchester Engine Lathe EQUIPPED WITH

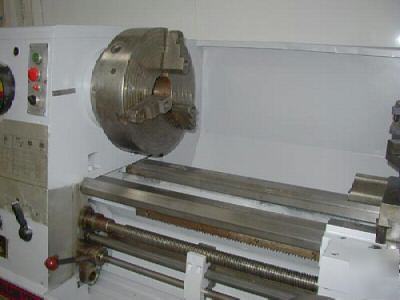

15" 3-Jaw Chuck, 19-3/4" 4-Jaw Chuck
Clausing Colchester Engine Lathe Approximate Weight......................6400 Lbs.
