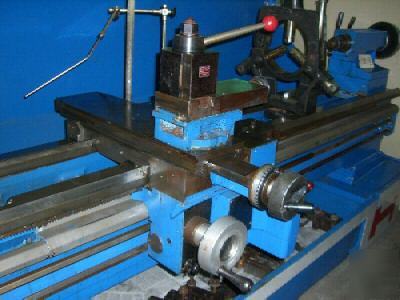

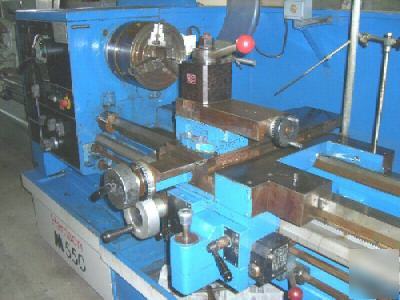

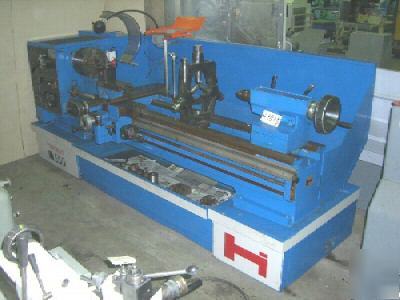

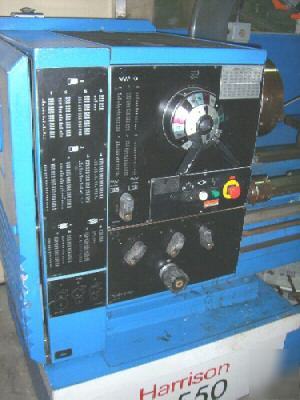

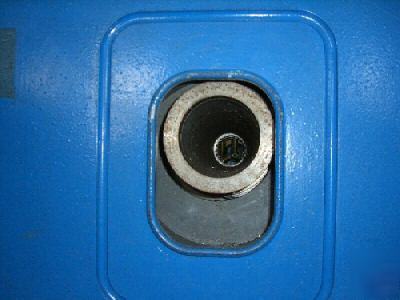

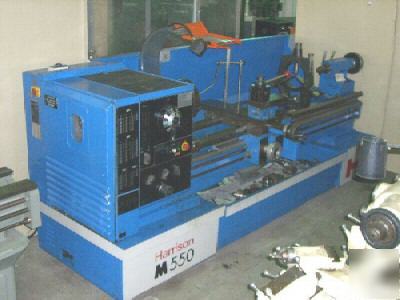

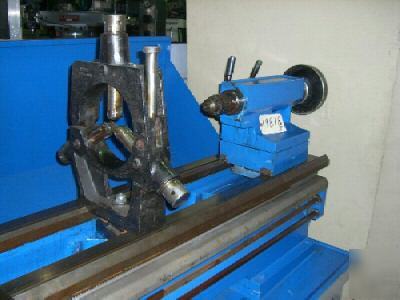

21"/32" x 80" cc, HARRISON, No. M550, Gap Bed, 1400 RPM, Inch/mm, 3.5" Hole, 97' Our stock number: 19818 Harrison Engine Lathe MODEL..................................M550GH Harrison Engine Lathe SERIAL NUMBER..........................5M0097 Year: 1997 Harrison Engine Lathe GENERAL SPECIFICATIONS Swing Over Bed.........................21-7/8" Swing In Gap...........................32-3/4" Swing Over Cross Slide.................14-1/2" Distance Between Centers...............80" Spindle Hole...........................3-1/2" Spindle Nose...........................D1-11 Camlock Spindle Speeds.........................(16) 18 to 1400 RPM Threads, Metric........................(78) 0.2 to 14mm Threads, English.......................(79) 2 to 84 TPI Threads, Module........................(47) 0.2 to 3.5 MOD Threads, Diametral.....................(47) 8 to 72 D.P. Feeds, Metric..........................(38) 0.04 to 2.84 mm/rev Feeds, English.........................(38) 0.0016 to 0.0110 in/rev Tailstock Quill Diameter...............3-3/4" Tailstock Travel.......................7" Tailstock Morse Taper..................No. 6 Harrison Engine Lathe EQUIPPED WITH Instruction and Spare Parts Manual NOTE: 2006 Replacement Price $41,000.00 Harrison Engine Lathe Approximate Weight.....................6300 Lbs. |
