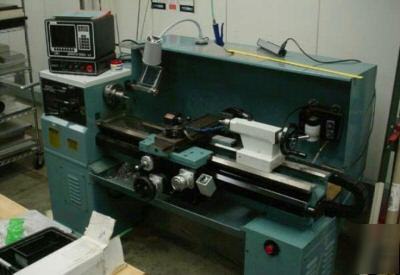

2003 Proto Trak 1440P CNC Lathe with Proto Trak LX2 Control. Distance Between Centers 40" Swing Over the Saddle Wings 13 3/16" Swing Over the Cross Slide 7 13/16" Bed Width & Height 10" & 10 1/4" Headstock Spindle Noe (CamLock) D1-5 Spindle Throught Hole 1 5/8" Spindle Taper 1 deg, 20min 15 sec Taper in Reduction Sleeve MT-4 Spindle Dia/Front Bearing 2.76" Spindle Speed Range (RPM) 35-2400 Tailstock Quill Travel 5 1/2" Dimensions Lengh, Width, Height 78" x 33" x 56" Other Coolant Pump Motor 0.07 HP To purchase or for any questions, please contact Tom Cardone at or call . |
