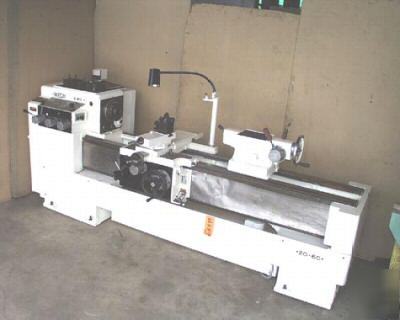

20" x 60" cc Ikegai No. A-20, 10 HP, 18-2000 RPM, Inch/Metric, 10 HP, 1975 Our stock number: 16687 Ikegai Engine Lathe MODEL..................................A-20 Ikegai Engine Lathe SERIAL NUMBER..........................14335T Year: 1975 Ikegai Engine Lathe GENERAL SPECIFICATIONS Actual Swing Over Bed Ways.............20-1/2" Swing Over Cross Slide.................11-3/8" Maximum Distance Between Centers.......60" Spindle Bore Size......................1-3/4" Spindle Nose...........................D1-6 Camlock Tailstock Taper........................5 MT Spindle Speeds.........................(13) 18 To 2000 RPM Threads................................(92) Inch/Metric/Module Feeds..................................(92) .0008 To .250 IPR Ikegai Engine Lathe EQUIPPED WITH 12" Dia. 3-Jaw, 16" 4-Jaw Chuck Ikegai Engine Lathe Approximate Weight.....................6000 Lbs. |
